How To Install Rain Sensors For Automatic Window Closure?
To install rain sensors for automatic window closure, we’ll start by choosing a suitable location, preferably at least 6 feet above ground and 50 feet away from any obstacles. Essential tools include wire strippers and a microcontroller for circuit integration. We’ll prepare the area by ensuring it’s clean and protected from debris. After mounting the sensor, we can set up a manual override for flexibility. This brief overview introduces the process, and more detailed steps follow.
Key Takeaways
- Choose an installation location at least 6 feet above ground, avoiding nearby buildings and shrubs for accurate moisture detection.
- Prepare the area by ensuring a clean, stable, and level mounting surface, free from dust and debris.
- Use proper wiring connections to a microcontroller, ensuring the rain sensor is powered and has common grounding.
- Integrate the mechanical actuator securely to the window frame, aligning it with the window’s travel distance for smooth operation.
- Implement manual override buttons to allow users to switch between automatic sensor mode and manual control easily.
Understanding Rain Sensor Functionality
You may be interested
Rain sensors play an essential role in protecting our living spaces from water damage. These devices utilize advanced rain detection technology to identify moisture on their surfaces. When rain is detected, the sensor converts this information into an electrical signal. This signal is then sent to our window control system, triggering automatic closure.
There are several sensor types available. Resistive sensors measure changes in electrical resistance, while capacitive sensors utilize capacitance changes caused by water drops. Optical sensors work by detecting light refraction changes. Additionally, we can find combination sensors that detect wind and rain simultaneously, improving protection. Proper kitchen ventilation systems can also enhance indoor air quality by removing moisture, which is beneficial in preventing damage from excessive humidity.

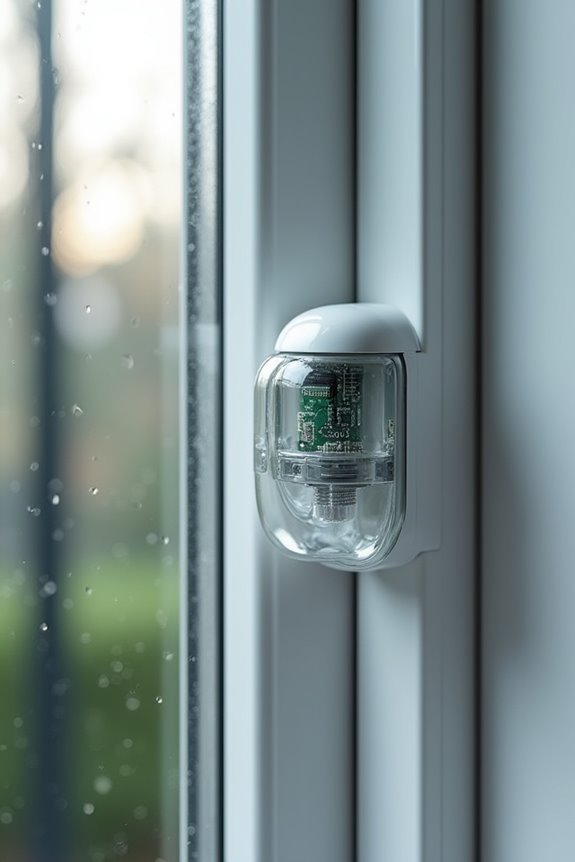

Choosing the Right Location for Sensor Installation
When selecting a location for installing a rain sensor, there are several significant factors to contemplate. First, we should aim for at least 6 feet above ground, making sure the sensor is level and free from obstructions like eaves or trees. Next, let’s consider open areas that are clear from buildings or shrubs to avoid wind turbulence. Also, keeping a clearance of about 50 feet around the sensor guarantees accurate rainfall measurement. Accessibility is vital for maintenance, so we want a spot that’s easy to reach without unsafe climbing. Finally, we need to guarantee good connectivity, so let’s avoid metal structures that might interfere with signals. Following these sensor placement tips will assure we achieve peak performance. Additionally, ensuring the sensor’s location is free from obstructions will help in obtaining accurate readings and prevent false triggers.

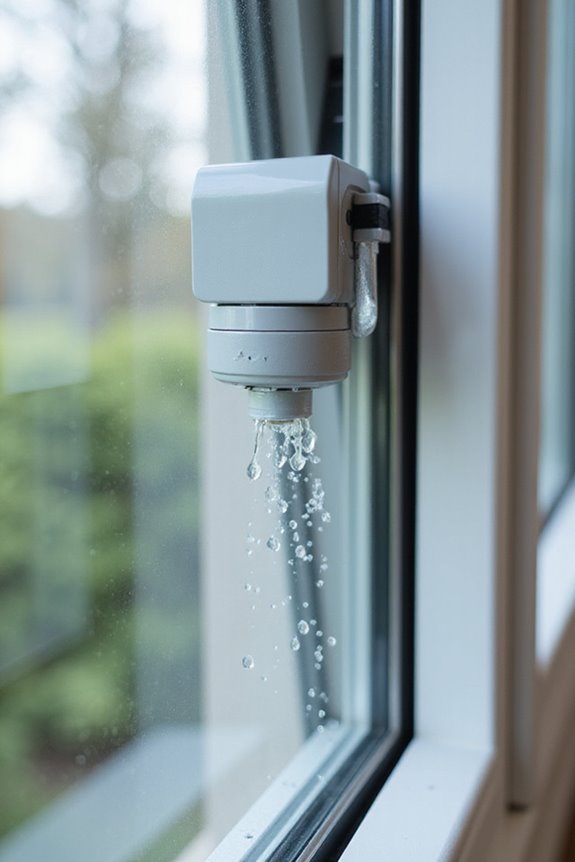

Essential Tools and Materials for Installation
To successfully install a rain sensor, we’ll need a set of essential tools and materials that guarantee a streamlined and productive process.
Basic Electrical Tools
- Wire strippers
- Screwdrivers (Philips and flathead)
- Multimeter
Sensor and Motor Components
- Rain sensor module for reliable moisture detection
- Compatible DC or wiper motor
Wiring and Connectivity Materials
- Shielded twisted-pair wire, like 22 AWG
- Connectors, terminal blocks, and crimp terminals
Mechanical Mounting Supplies
- Mounting brackets and screws for secure attachment
- Adhesive pads for no-drill options
Safety and Testing Equipment
- Circuit breakers for electrical protection
- Voltage tester for safe setup
This list guarantees sensor compatibility and adherence to wiring guidelines, paving the way for a successful installation. Additionally, considering energy efficiency in your window choices can enhance the overall performance of your home automation systems.
Recommended Products
[4K Ultra HD and Color Night Vision] This incredible 4K CMOS image sensor allows the camera to capture more light, resulting in improved color, contrast, and low-light performance. With 4K resolution, you can record everything in stunning detail with high pixel count and digitally zoom in on objects in the distance without losing any quality.
【16pcs 5MP Weatherproof Dome Camera】With the weatherproof and full metal housing, this security camera can stand on guard anywhere, outdoor or indoor, and in any harsh weather conditions. Get a sharp and crisp image day or night with the camera's automatic IR-CUT filter, Up to 80ft night vision in total darkness, and 130ft Night vision in ambient light. More than 3.0Lux the night vision is color.
(1). [ 5MP 3K HD & Night Vision ] __ Featuring our H.265+ 16CH 4K PoE NVR Recorder and 16 x 5MP (3K) weatherproof bullet dome PoE cameras with up to 120ft night vision capabilities, this system offers exceptional monitoring capabilities. The system also provides a 4TB Security Grade Hard Drive for convenient local storage.

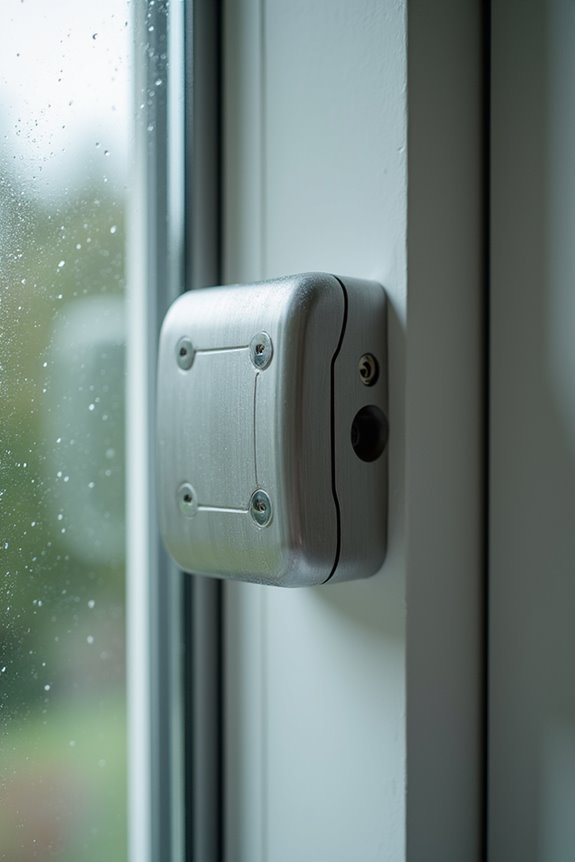

Preparing the Installation Area
Preparing the installation area for our rain sensor involves several key steps to secure ideal performance and longevity. First, we need to conduct a thorough site evaluation. Let’s look for an open area that’s directly exposed to rainfall, free from overhangs or trees that could shield the sensor.
Next, we must consider the environmental conditions. It’s vital to avoid direct sunlight and dust since these can impact accuracy. The mounting surface should be stable, clean, and properly leveled, supporting the sensor’s weight.
We also need to verify nearby zones are free of debris that could disrupt the sensor’s function. By taking these preparatory steps seriously, we can improve our sensor’s efficiency and lifespan, ultimately enhancing our automatic window closure system. Additionally, maintaining optimal airflow in the vicinity can help in preventing moisture-related issues that may affect the sensor’s performance.

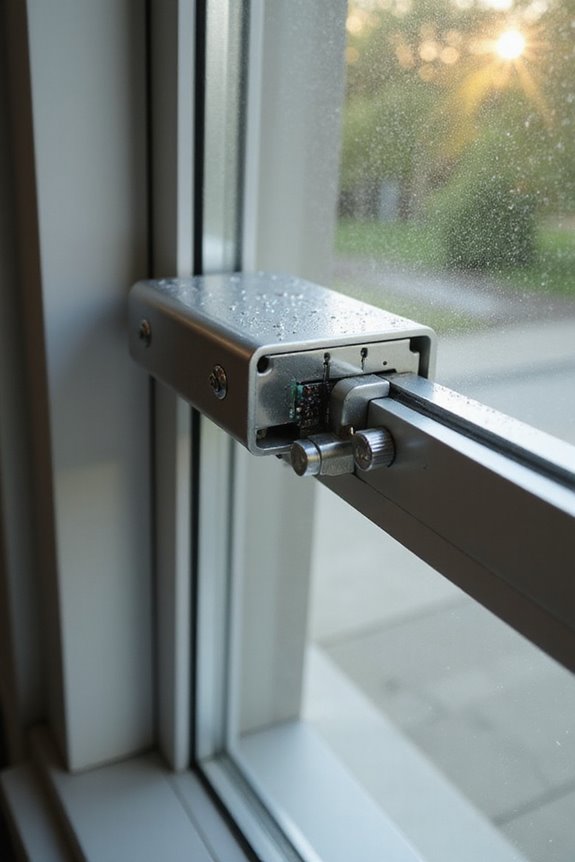

Installing the Rain Sensor
